X1C5 Pro

(5 customer reviews)

$125.00

Handheld APRS tracker.  With 2 options: VHF(144-148Mhz)/UHF(440-448Mhz)

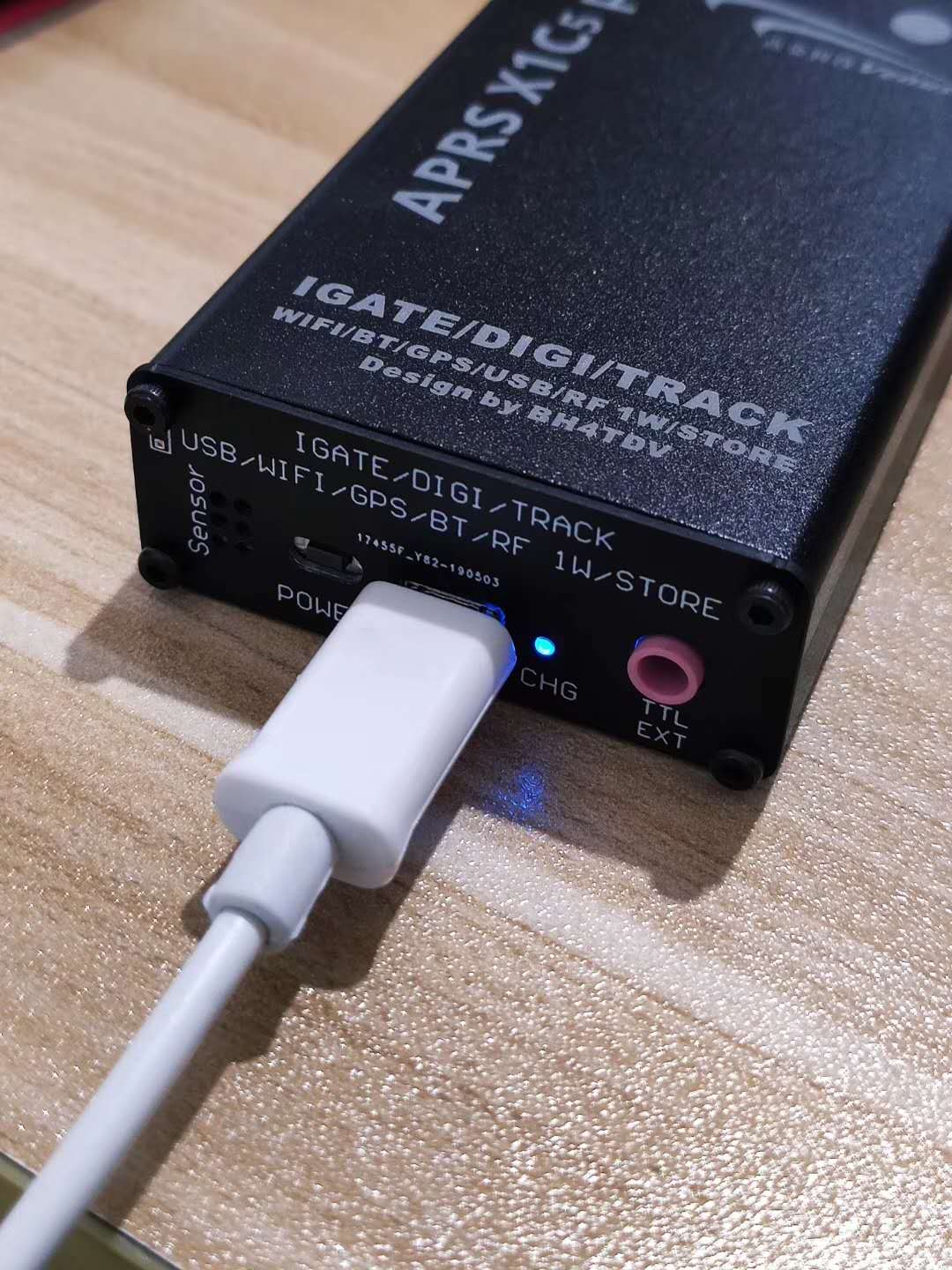

X1C5 series now uses Type-C for charging and programing.

SKU: N/A Category:

Description

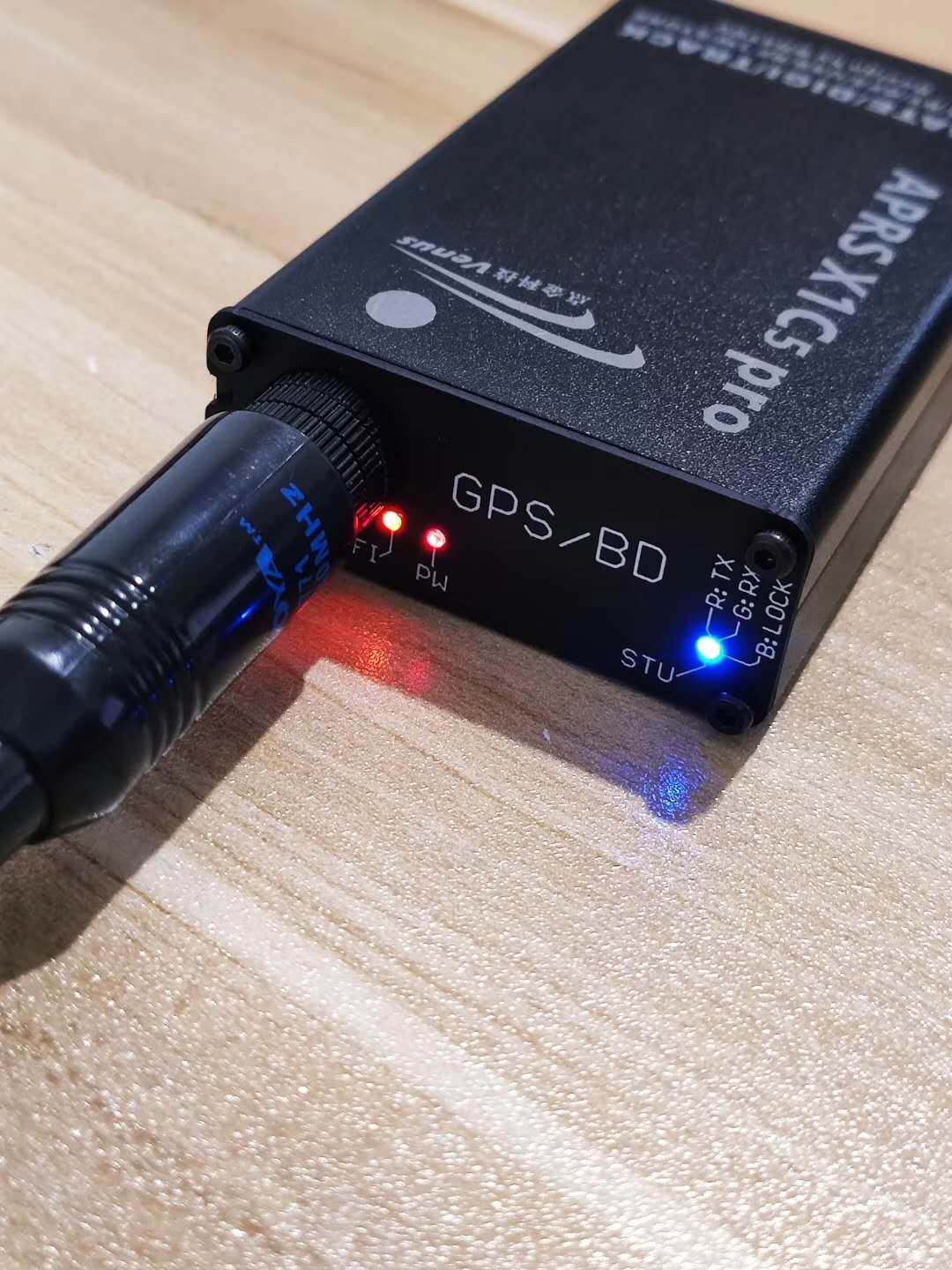

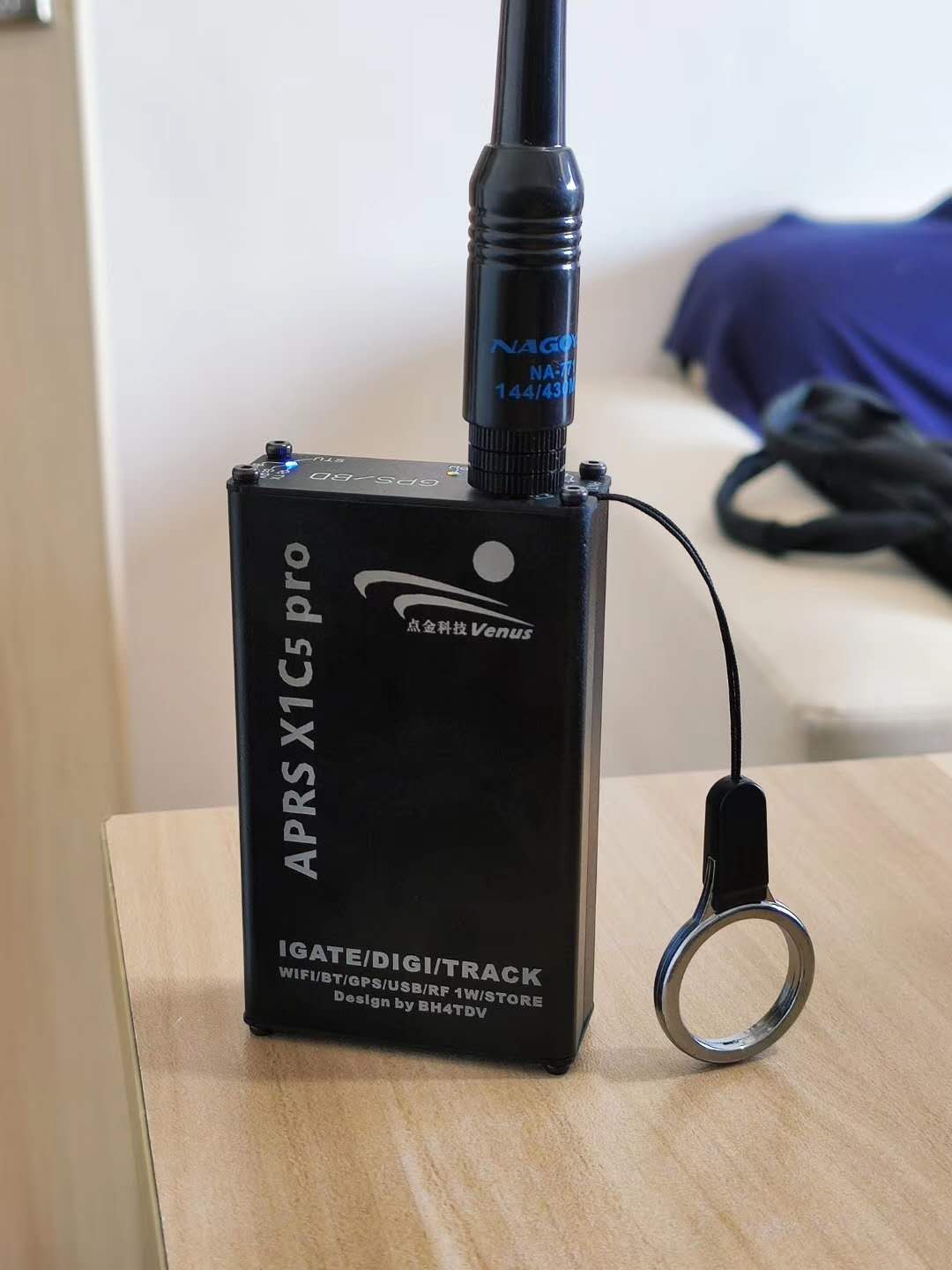

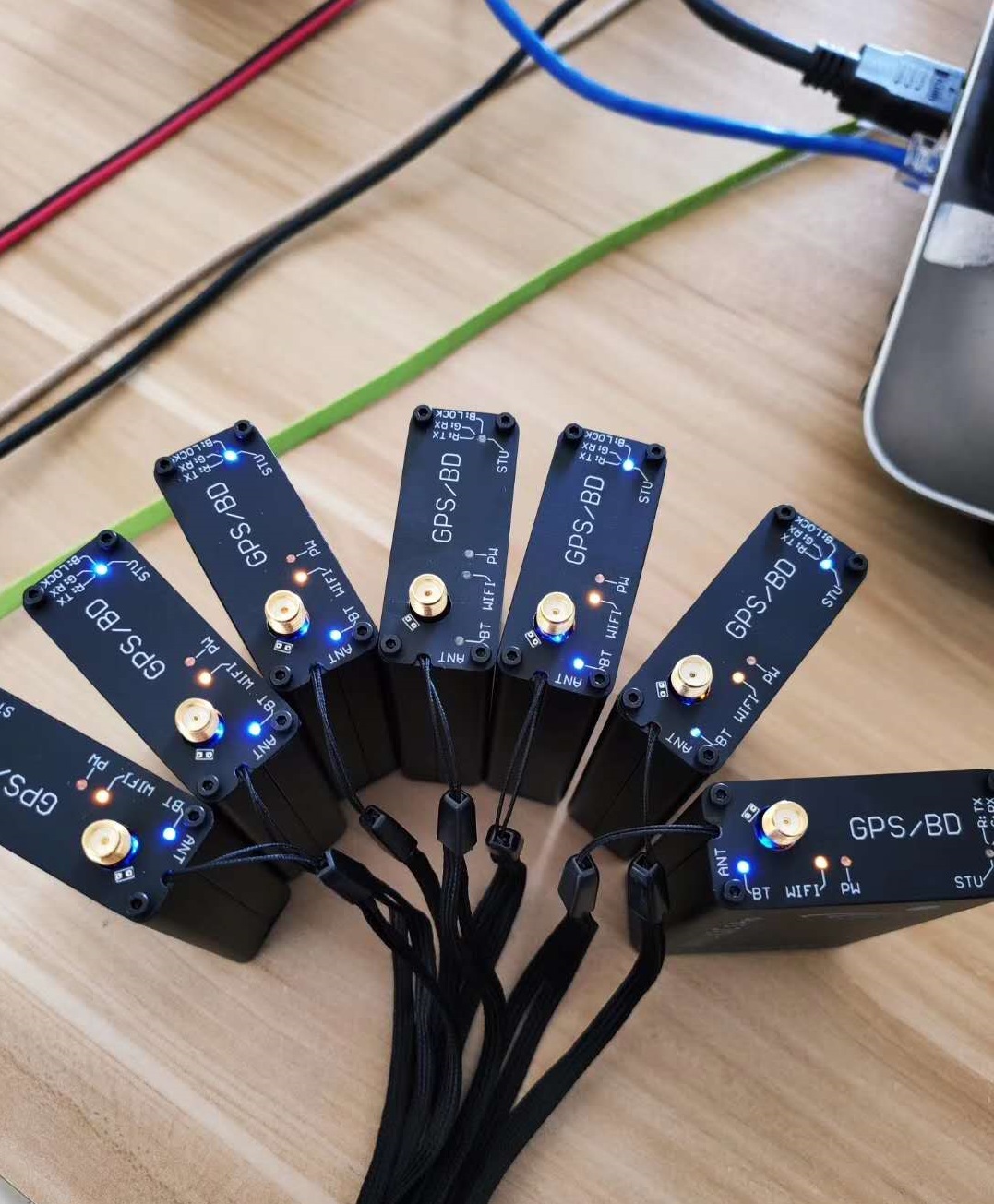

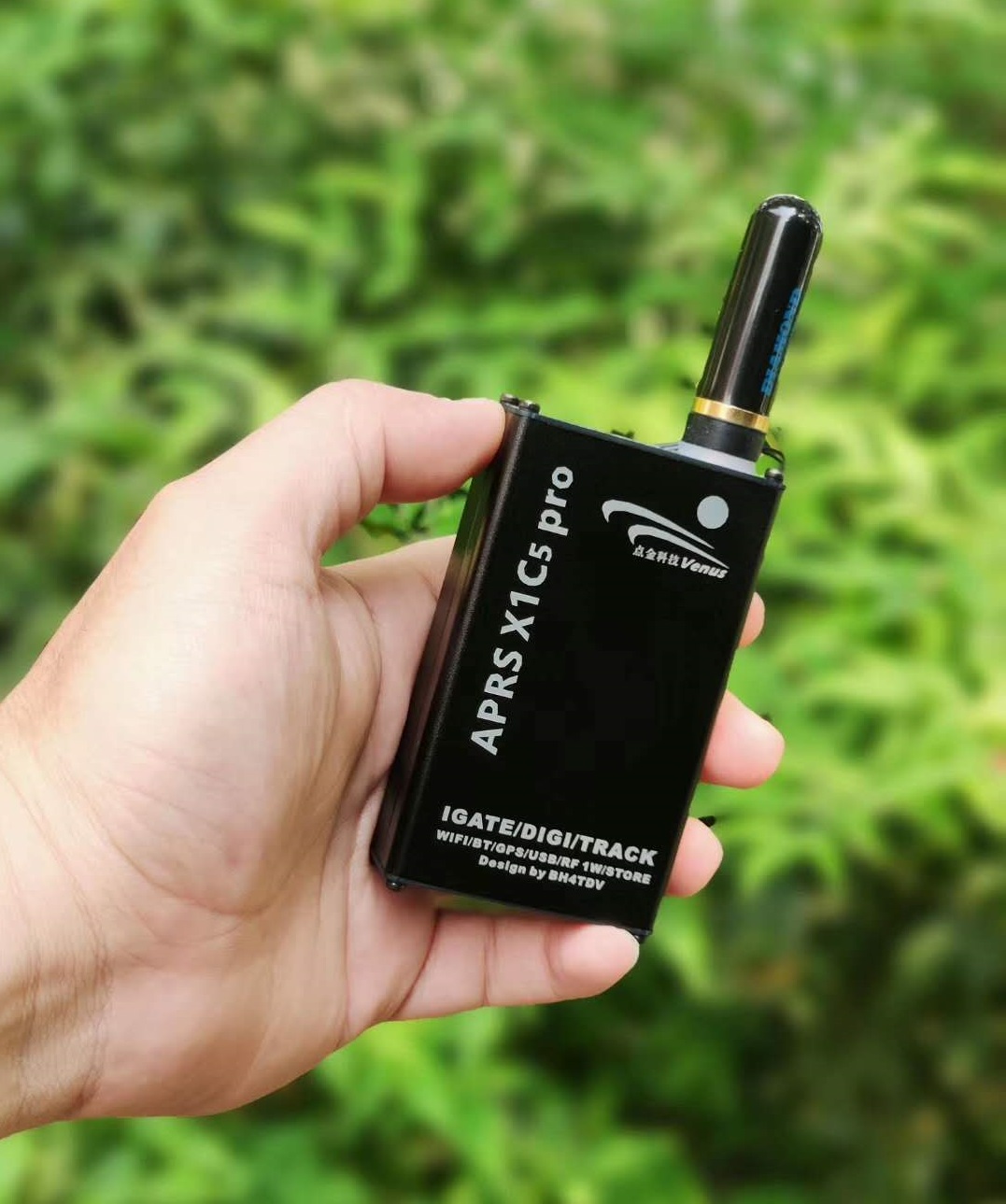

Handheld APRS tracker.

1 watt RF out; WiFi and Bluetooth.



Manual

APRS setting program

Support fixed station FIXED, sports SPORT, 2 site modes

Support complete TRACK tracker, support intelligent, timing, PTT linkage, queue beacon

Support beacon additional information, mileage, satellite number, voltage, temperature, air pressure, etc.

Support mileage calculation, support accumulated mileage or automatically clearance

Support for automatic icons (TRACK smart mode)

Support GPS power saving mode (TRACK PTT linkage mode, TRACK timing mode)



Integrated 2.0+4.0 dual mode Bluetooth,

Support Bluetooth output KISS hex, UI, GPWPL, KISS ASC, GS232B and other protocols

Support Bluetooth output GPS data (GPRMC+GPGGA), support mixed output

Support Bluetooth KISS data bidirectional transparent transmission

Support full DIGI relay function, support custom relay name, support relay remote turn-off function

Support remote control peripheral sensor input and relay output module



Built-in advanced CMX programming algorithm

Built-in transmit level, receive level adjuster (-10.5dB -0dB)

Built-in high performance GPS\Beidou\GLONASS multimode hybrid positioning module

Built-in advanced algorithm to support rich data analysis

Support heading, north position, relative motion position calculation

Support APRS distance, elevation target calculation, support G5500 aircraft, vessel and other tracking control

Companion PC setup software (Chinese, English) (requires .NET 4.0)



UHF or VHF options, 1W RF output

Support battery USB direct charging

Support comprehensive GPS interface, beacon list interface, real-time beacon interface, beacon record analysis interface

Built-in temperature\pressure auxiliary sensor (temperature & air pressure values for reference only)

Support off-network use, no network, direct mutual positioning

Support liuyun, APRSdroid, LOCUS, Ovi and other APP

Support user independent firmware upgrade

Additional information

Weight 0.099 kg
Dimensions 8.8 × 5 × 2 cm
BAND

UHF, VHF

5 reviews for X1C5 Pro

  1. B Johnston

    Bought it a year ago and use it on my ebike. Manual is lacking info on using /settings many of the features ie smart beaconing and Bluetooth. Thought after a year someone would expand the manual; surprised that has not happen as yet. It is only 1 watt but found it adequate when using a better antenna.

  2. Ternai

    I am trying to change broadcast frequency on aprs from 144.000 to 144.390. However the x1c5 pro does not seem to record the change in software. All other settings change properly. How do you change to 144.390?

  3. Stephan 9V1LH

    What is the purpose of the TTL Ext? Is it 5 V or 3.3 V TTL? Can it do KISS through this port instead of using Bluetooth?

    • ba4tbqth

      It is 3.3V,just like BT output.you may setup the Bluetooth output1 as UI.

  4. Mike

    I recently had the chance to get the X1C5 Plus newer version with USB-C Port. The firmware is recognized at boot screen / programming software as X1C5_D4_220310 .
    Looking for firmware downloads I could only find an older version from 2021.
    The latest setup program I could find seems also to be outdated from 20211123. Documentation is years after product release uncomplete (what is affected by the Q parameter when using smart beaconing), setup program and firmware are quite buggy (the tracker send frames much too often) …
    Because the hardware is really nice and using a better RF module like many ESP tracker projects, I’d like to see both, firmware and setup program as open source on GitHub please!

  5. Gus

    Hi! Do this device transmit on an other UHF frecuencies other than HAM Radio band (430-450)? Can be customized? Thanks

    • ba4tbqth

      Our UHF version covers 400 – 470 Mhz.
